Platform Screen Door PSD
Modular PSD
It is a construction method in which one entire unit is modularized into an integrated structure in the factory, brought into the field, and installed.
01. Install the module that was transported by a motor car
02. Fix the unit module
03. Installing the upper frame
04. Finish

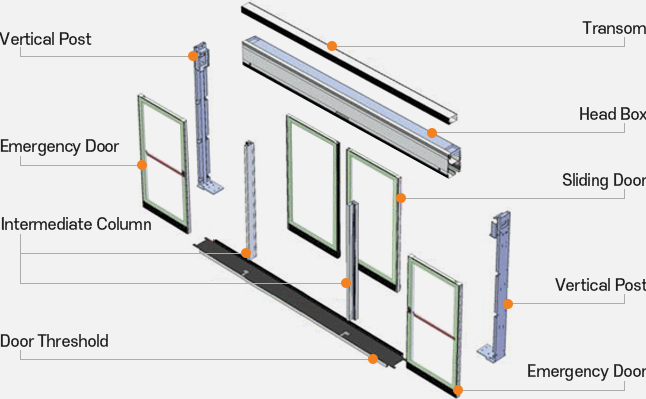

Module Configuration
Major Core Technology
- Module configuration component technology (modularization of component parts)
- Structural strength and buildability securement
- Lightweight and aesthetic design application
- Door module installing manipulator for transporting and installing units in stations
Advantages of the Modular Type PSD
- Secures quality stability
- Minimizes problems that occur in the field
- Shortens the construction period
- Improves the beauty
Major Installation Cases
Major Results
| Project | Quantity | Business Year | Note |
|---|---|---|---|
Produced and installed PSD in 11 stations including Jangsan Station on Busan Line 2 |
11 Stations |
2016 |
Completion |
Produced and installed PSD in 10 stations including Sinpyeong Station on Busan Line 1 and 2 |
10 Stations |
2015 |
Completion |
Produced and installed screen doors in 5 stations including Jungdong Station on Busan Line 2 |
5 Stations |
2014 |
Completion |
Produced and installed screen doors in 6 stations including Goejeong Station on Busan Line 1 |
6 Stations |
2014 |
Completion |
Produced and installed screen doors in 8 stations including Daeyeon Station on Busan Line 2 |
8 Stations |
2013 |
Completion |
Produced and installed screen doors in 7 stations including Hadan Station on Busan Line 1 |
7 Stations |
2013 |
Completion |
Produced screen doors for the second stage of Seoul Line 9 |
5 Stations |
2013 |
Completion |
Produced and installed screen doors in 7 stations including Bujeon Station on Busan Line 1 and 2 |
7 Stations |
2012 |
Completion |
Produced and installed screen doors in 7 stations including Gwangan Station on Busan Line 1 and 2 |
7 Stations |
2012 |
Completion |
